25kA Single Phase Type 1 Surge Protection Device BR-25GR 1P+N

Product Categories
Britec Electric Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

25kA Single Phase Type 1 Surge Protection Device BR-25GR 1P+N

  • 1
  • 2

Brand Name : BRITEC

Model Number : BR-25GR 1P+NPE

Place of Origin : China

MOQ : 100 Piece/Pieces

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 500000 Piece/Pieces Month

Delivery Time : Shipped in 25 days after payment

Packaging Details : EXPORT PACKING

Item Name : spark gap surge protective device

Type : Ac Surge Protector

Material : Plastic

Pole number : 1P,2P,3P,4P,1+1,3+1

Uc : 385V

Iimp : 25kA

Enclosure : Thermoplastic UL94-V0

Certificate : TUV/SEMKO/CB/CE/ROHS/ISO9001 approved standard

Tu : -40℃-80℃

Application : surge arrester is suitable for single-phase TT and TN-S system

Contact Now

25kA Single Phase Type 1 Surge Protection Device Features:

Endurable,sustains thousands of strikes.

Status indication.

Protection class: Type 1,Class I.

Pole number:1P,2P,3P,4P,1+1,3+1.

Widely suitable for TT system,for protecting the buildings to avoid national defense.

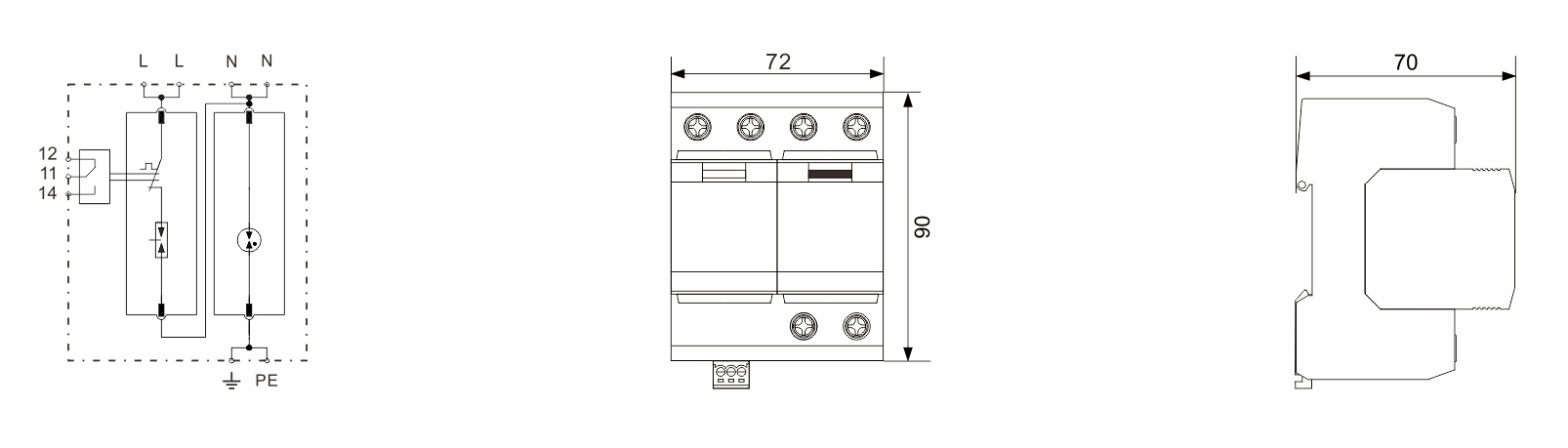

Dimension:

25kA Single Phase Type 1 Surge Protection Device BR-25GR 1P+N

25kA Single Phase Type 1 Surge Protection Device Product characteristics:

Specification BR-25GR 275 1+1
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1
SPD dassification according to IEC61643-11 Class I
Max continuous 0perating a.c. voltage Uc 275V
Lightning impulse current (10/350µs) limp 25kA
Nominal discharge current (8/20µs) In 25kA
Voltage protection level Up ≤2.3kV
Follow current extinguishing capability a.c. lfi 3kA rms

Max. backup fuse

315A gG

Response time tA

≤100ns

For mounting on

35mm Din rail

Degree of protection IP20
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²

Enclosure material

Thermoplastic UL94-V0

SPD Breaker Meaning Explained:
Equipped with an circuit breaker, this SPD automatically disconnects during overloads or faults, preventing damage to connected devices.
SPD Circuit Diagram Intergration:
The product includes a detailed SPD circuit diagram for easy installation and troubleshooting.
Smart SPD Control:
Advanced monitoring and control capabilities allow real-time surge tracking and status updates.
Workshop:

Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.


25kA Single Phase Type 1 Surge Protection Device BR-25GR 1P+N

Company Information:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


25kA Single Phase Type 1 Surge Protection Device BR-25GR 1P+N

Exhibition:

Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.


25kA Single Phase Type 1 Surge Protection Device BR-25GR 1P+N

Certifications:

Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.


25kA Single Phase Type 1 Surge Protection Device BR-25GR 1P+N

Product Uses:

Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.


25kA Single Phase Type 1 Surge Protection Device BR-25GR 1P+N

FAQ:

Q1: How about your experience?

A: We have our own factory and in-house test laboratory, our R&D department have more than 21 years experiences.

Q2: What's your advantage?

A: Fast delivery: 3 weeks. Qulaity recognized :cooperate with transnational company.

Q3: Is custom design package acceptable?

A: Inner box and out carton are made as per international standard. We can make packaging according to customer's need.

Q4: Could you do OEM for us?

A: Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.

Q5: How about warranty?

A: 5 years.

Q6: Could I buy 1pc sample first and small order?

A: Of course,support sample order, especially for new customers under certain condition.

Q7: How long make a sample?

A: 7-10 days.

Q8: How does your company do regarding the quality control?

A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. IQC inspects the components, the patrol inspection is done during production and all the goods to be tested 100% before leaving the factory.
